SS FVT Series Conveyor Unyolo wokhala ndi Zodzigudubuza mu SS/POM/PA6
Unyolo wa Conveyor (FVT Series)

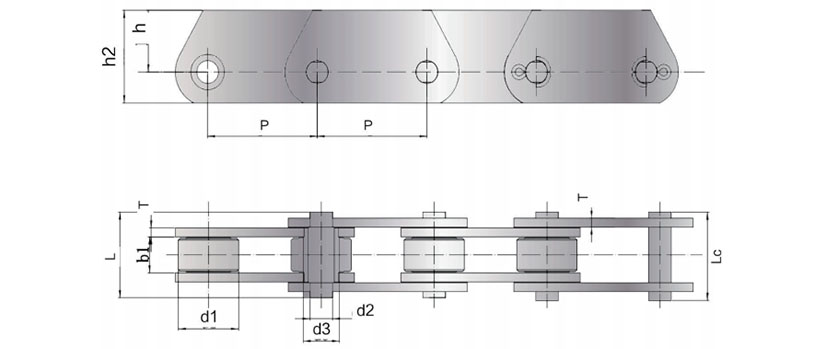

| GL Chain No | Phokoso | Wodzigudubuza Diameter | Pin Diameter | Chitsamba Diameter | Mbale Makulidwe |
M'lifupi Pakati | Kutalika kwa Pin | Kutalika kwa Plate | Ultimate Tensile Mphamvu | ||||||||
| P | d1 pa | d2 max | d3 max | T | b1 | L | Lc max | h2 | h max | q min | |||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
| Chithunzi cha SSFVT40 | 50 | 63 | 80 | 100 | 125 | - | - | 32 | 10 | 15 | 3.0 | 18 | 36 | 39.0 | 35.0 | 22.5 | 28.00 |
| Chithunzi cha SSFVT63 | 63 | 80 | 100 | 125 | 160 | - | - | 40 | 12 | 18 | 4.0 | 22 | 45 | 48.5 | 40.0 | 25.0 | 44.10 |
| Chithunzi cha SSFVT90 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 48 | 14 | 20 | 5.0 | 25 | 53 | 56.5 | 45.0 | 27.5 | 63.00 |
| Chithunzi cha SSFVT112 | 100 | 125 | 160 | 200 | 250 | - | - | 55 | 16 | 22 | 6.0 | 30 | 62 | 66.0 | 50.0 | 30.0 | 72.80 |
| Chithunzi cha SSFVT140 | 100 | 125 | 160 | 200 | 250 | - | - | 60 | 18 | 25 | 6.0 | 35 | 67 | 71.5 | 60.0 | 37.5 | 84.00 |
| Chithunzi cha SSFVT180 | 125 | 160 | 200 | 250 | 315 | - | - | 70 | 20 | 30 | 8.0 | 45 | 86 | 92.0 | 70.0 | 45.0 | 108.00 |
| Chithunzi cha SSFVT250 | 160 | 200 | 250 | 315 | - | - | - | 80 | 26 | 36 | 8.0 | 55 | 97 | 103.58 | 80.0 | 50.0 | 150.00 |
| Chithunzi cha SSFVT315 | 160 | 200 | 250 | 315 | 400 | - | - | 90 | 30 | 42 | 10 | 65 | 113 | 126.59 | 90.0 | 55.0 | 189.00 |
Maunyolo olumikizira maulalo akuya awa amapezeka m'mapangidwe osiyanasiyana.
Timapereka maunyolo otumizira maulalo akuya molingana ndi FVT (DIN 8165), MT (DIN 8167) en BST. Maunyolo onyamula awa amapezeka m'mapangidwe osiyanasiyana, okhala ndi kapena opanda zomata ndi mitundu yosiyanasiyana ya ma roller.
Kupatula mapangidwe osiyanasiyana, pali zipangizo zosiyanasiyana zotheka monga chitsulo, zinki-yokutidwa zitsulo, faifi tambala zitsulo kapena zitsulo zosapanga dzimbiri mu kalasi SS-304 (1.4301), SS-304L (1.4306), SS-316L (1.4406), SS -316Ti (1.4357). Chitsulo cha carbon chimapezeka.
